鋼絲繩
Steel wire rope

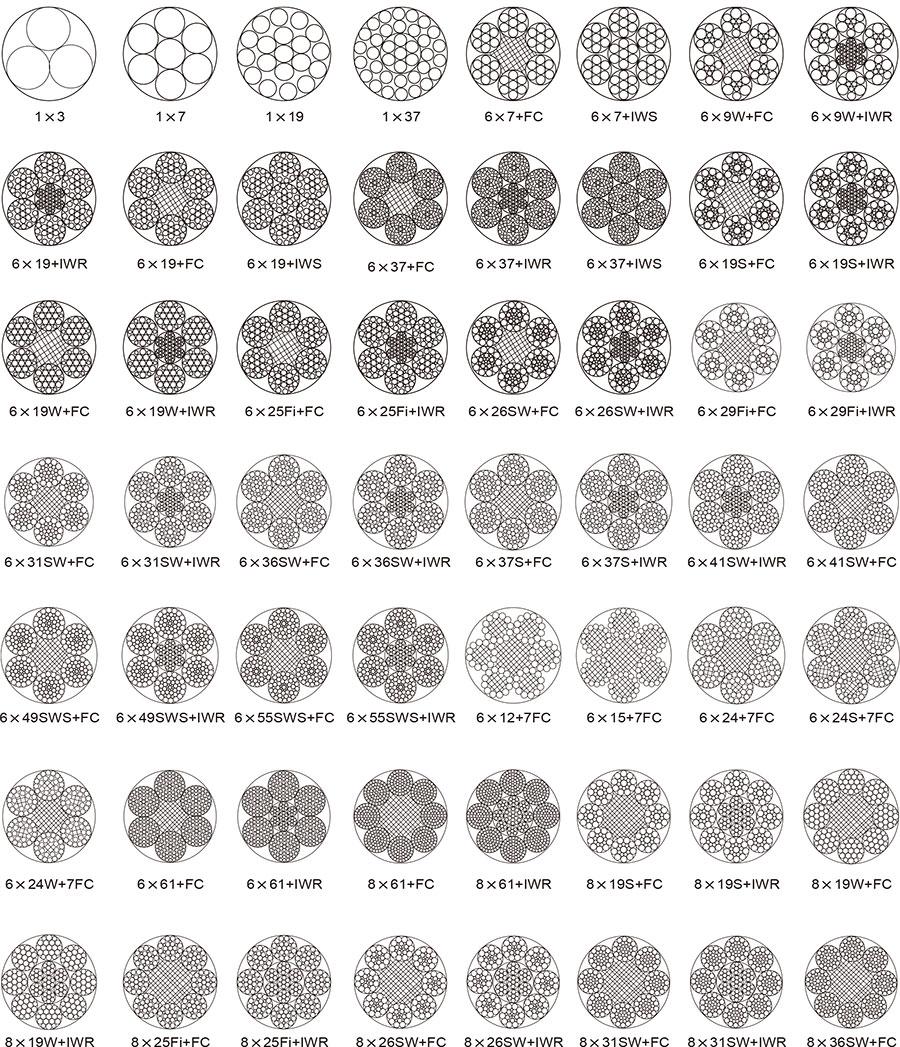

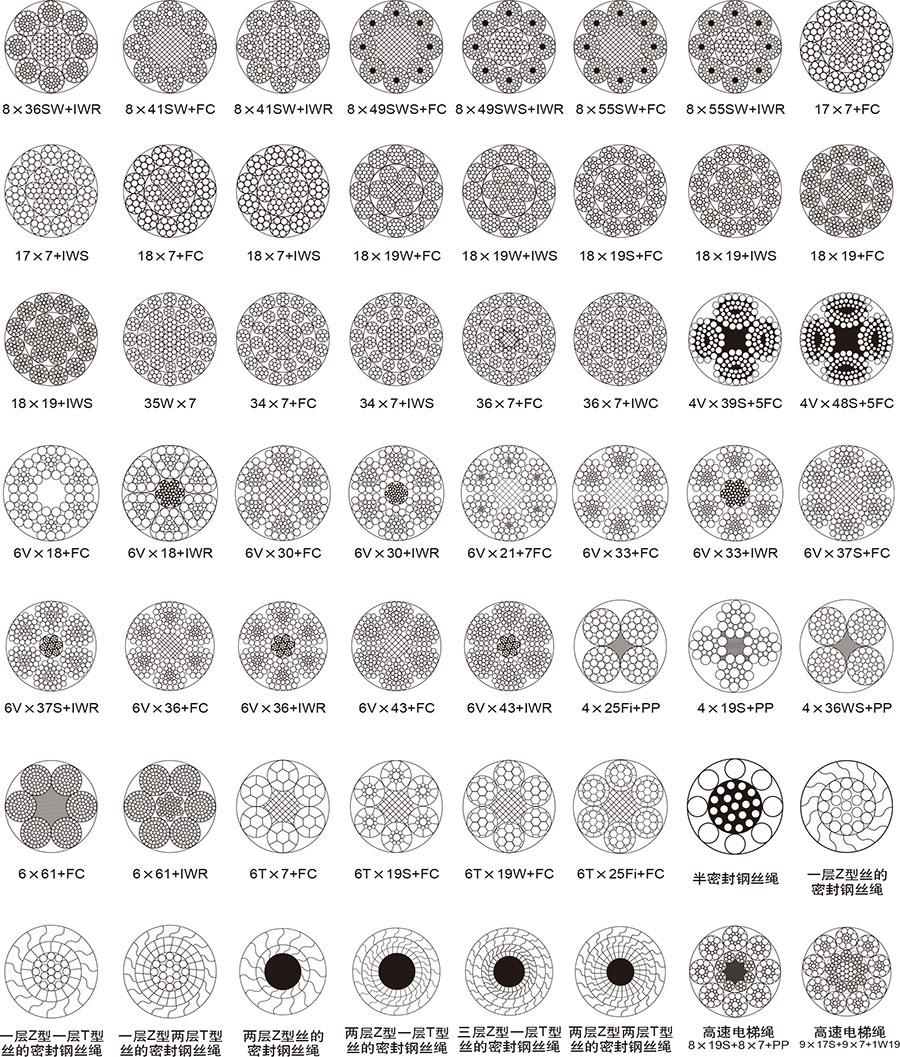

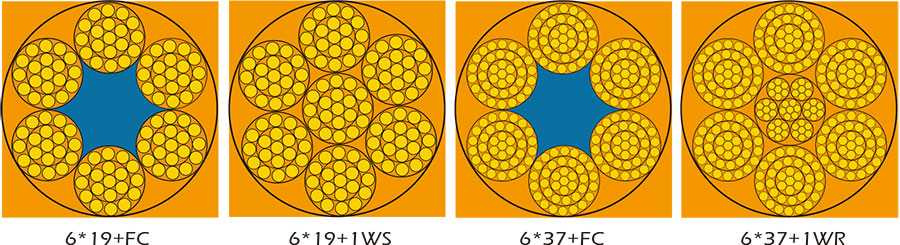

鋼絲繩典型結構剖面圖
Typical anatomical structure of steel wire rope
|
鋼絲繩公稱直徑Nominal wire rope diameter |
鋼絲繩近似重量 Approximate weight of steel wire rope |
鋼絲繩公稱抗拉力強度 MPa Nominal tensile strength of steel wire rope |
|||||||||||
|
1470 |
1570 |
1670 |
1770 |
1870 |
|||||||||
|
鋼絲繩最小破斷拉力 Minimum tensile steel wire rope breaking |
|||||||||||||
|
d |
天然纖 維芯 Natural fiber core |
合成纖 維芯 Fiber Core |
鋼 芯 Steel core |
纖維芯 鋼絲繩 Fiber core wire rope |
鋼芯鋼 絲繩 Steel core steel Rope |
纖維芯 鋼絲繩 Fiber core Rope |
鋼芯 鋼絲繩 Steel core steel Rope |
纖維芯 鋼絲繩 Fiber core wire rope |
鋼芯 鋼絲繩 Steel core steel Rope |
纖維芯 鋼絲繩 Fiber core Rope |
鋼芯 鋼絲繩 Steel core steel Rope |
纖維芯 鋼絲繩 Fiber core Rope |
鋼芯 鋼絲繩 Steel core steel Rope |
|
mm |
Kg / 100 mm |
KN |
|||||||||||
|
8 |
22.10 |
21.60 |
24.40 |
28.80 |
31.20 |
30.80 |
33.30 |
32.80 |
35.40 |
34.70 |
37.60 |
36.70 |
39.70 |
|
9 |
28.00 |
27.30 |
30.90 |
36.50 |
39.50 |
39.00 |
42.20 |
41.50 |
44.90 |
44.00 |
47.50 |
46.50 |
50.20 |
|
10 |
34.60 |
33.70 |
38.10 |
45.10 |
48.80 |
48.10 |
52.10 |
51.20 |
55.40 |
54.30 |
58.70 |
57.40 |
62.00 |
|
11 |
41.90 |
40.80 |
46.10 |
54.60 |
59.00 |
58.30 |
63.00 |
62.00 |
67.00 |
65.70 |
71.10 |
69.40 |
75.10 |
|
12 |
49.80 |
48.50 |
54.90 |
64.90 |
70.20 |
69.40 |
75.00 |
73.80 |
79.80 |
78.20 |
84.60 |
82.60 |
89.40 |
|
13 |
58.50 |
57.00 |
64.40 |
76.20 |
82.40 |
81.40 |
88.00 |
86.60 |
93.70 |
91.80 |
99.30 |
97.00 |
104.00 |
|
14 |
67.80 |
66.10 |
74.70 |
88.40 |
95.60 |
94.40 |
102.00 |
100.00 |
108.00 |
106.00 |
115.00 |
112.00 |
121.00 |
|
16 |
88.60 |
86.30 |
97.50 |
115.00 |
124.00 |
123.00 |
133.00 |
131.00 |
141.00 |
139.00 |
150.00 |
146.00 |
158.00 |
|
18 |
112.00 |
109.00 |
123.00 |
146.00 |
158.00 |
156.00 |
168.00 |
166.00 |
179.00 |
176.00 |
190.00 |
186.00 |
201.00 |
|
20 |
133.00 |
135.00 |
152.00 |
180.00 |
195.00 |
192.00 |
208.00 |
205.00 |
221.00 |
217.00 |
235.00 |
229.00 |
248.00 |
|
22 |
167.00 |
163.00 |
184.00 |
218.00 |
236.00 |
233.00 |
252.00 |
248.00 |
268.00 |
263.00 |
284.00 |
277.00 |
300.00 |
|
24 |
199.00 |
194.00 |
219.00 |
259.00 |
281.00 |
277.00 |
300.00 |
295.00 |
319.00 |
312.00 |
338.00 |
330.00 |
357.00 |
|
26 |
234.00 |
228.00 |
258.00 |
305.00 |
329.00 |
325.00 |
352.00 |
346.00 |
374.00 |
367.00 |
397.00 |
388.00 |
419.00 |
|
28 |
271.00 |
264.00 |
299.00 |
353.00 |
382.00 |
377.00 |
408.00 |
401.00 |
434.00 |
426.00 |
460.00 |
450.00 |
486.00 |
|
30 |
311.00 |
303.00 |
343.00 |
406.00 |
439.00 |
433.00 |
469.00 |
461.00 |
498.00 |
489.00 |
528.00 |
516.00 |
558.00 |
|
32 |
354.00 |
345.00 |
390.00 |
462.00 |
499.00 |
493.00 |
533.00 |
524.00 |
567.00 |
556.00 |
601.00 |
587.00 |
635.00 |
|
34 |
400.00 |
390.00 |
440.00 |
521.00 |
564.00 |
557.00 |
602.00 |
592.00 |
640.00 |
628.00 |
679.00 |
663.00 |
717.00 |
|
36 |
448.00 |
437.00 |
494.00 |
584.00 |
632.00 |
624.00 |
675.00 |
664.00 |
718.00 |
704.00 |
761.00 |
744.00 |
804.00 |
|
38 |
500.00 |
487.00 |
550.00 |
651.00 |
704.00 |
695.00 |
752.00 |
740.00 |
800.00 |
784.00 |
848.00 |
828.00 |
896.00 |
|
40 |
554.00 |
539.00 |
610.00 |
722.00 |
780.00 |
771.00 |
833.00 |
820.00 |
887.00 |
869.00 |
940.00 |
918.00 |
993.00 |
|
42 |
610.00 |
594.00 |
672.00 |
796.00 |
860.00 |
850.00 |
919.00 |
904.00 |
978.00 |
958.00 |
1030.00 |
1010.00 |
1090.00 |
|
44 |
670.00 |
652.00 |
738.00 |
873.00 |
944.00 |
933.00 |
1000.00 |
992.00 |
1070.00 |
1050.00 |
1130.00 |
1110.00 |
1200.00 |
|
46 |
732.00 |
713.00 |
806.00 |
954.00 |
1030.00 |
1010.00 |
1100.00 |
1080.00 |
1170.00 |
1140.00 |
1240.00 |
1210.00 |
1310.00 |
|
鋼絲繩公稱直徑Nominal wire rope diameter |
鋼絲繩近似重量 Approximate weight of steel wire rope |
鋼絲繩公稱抗拉力強度 MPa Nominal tensile strength of steel wire rope |
|||||||||||
|
1470 |
1570 |
1670 |
1770 |
1870 |
|||||||||
|
鋼絲繩最小破斷拉力 Minimum tensile steel wire rope breaking |
|||||||||||||
|
d |
天然纖 維芯 Natural fiber core |
合成纖 維芯 Fiber Core |
鋼 芯 Steel core |
纖維芯 鋼絲繩 Fiber core Rope |
鋼芯 鋼絲繩 Steel core steel Rope |
纖維芯 鋼絲繩 Fiber core Rope |
鋼芯 鋼絲繩 Steel core steel Rope |
纖維芯 鋼絲繩 Fiber core Rope |
鋼芯 鋼絲繩 Steel core steel Rope |
纖維芯 鋼絲繩 Fiber core Rope |
鋼芯 鋼絲繩 Steel core steel Rope |
纖維芯 鋼絲繩 Fiber core Rope |
鋼芯 鋼絲繩 Steel core steel Rope |
|
mm |
Kg/100mm |
KN |
|||||||||||
|
11 |
41.90 |
40.80 |
46.10 |
52.40 |
56.70 |
56.00 |
60.60 |
59.60 |
64.40 |
63.10 |
68.30 |
66.70 |
72.10 |
|
12 |
49.80 |
48.50 |
54.90 |
62.40 |
67.50 |
66.60 |
72.10 |
70.90 |
76.70 |
75.10 |
81.30 |
79.40 |
85.90 |
|
13 |
58.50 |
57.00 |
64.40 |
73.20 |
79.20 |
78.20 |
84.60 |
83.20 |
90.00 |
88.20 |
95.40 |
93.20 |
100.00 |
|
14 |
67.80 |
66.10 |
74.70 |
84.90 |
91.90 |
90.70 |
98.10 |
96.50 |
104.00 |
102.00 |
110.00 |
108.00 |
116.00 |
|
16 |
88.60 |
86.30 |
97.50 |
111.0 |
120.00 |
118.00 |
128.00 |
126.00 |
136.00 |
133.00 |
144.00 |
141.00 |
152.00 |
|
18 |
112.00 |
109.00 |
123.00 |
140.0 |
151.00 |
158.00 |
162.00 |
159.00 |
172.00 |
169.00 |
182.00 |
178.00 |
193.00 |
|
20 |
138.00 |
125.00 |
152.00 |
173.00 |
187.00 |
185.00 |
200.00 |
197.00 |
213.00 |
208.00 |
225.00 |
220.00 |
238.00 |
|
22 |
167.00 |
163.00 |
184.00 |
209.00 |
226.00 |
224.00 |
242.00 |
238.00 |
257.00 |
252.00 |
273.00 |
266.00 |
288.00 |
|
24 |
199.00 |
194.00 |
219.00 |
249.00 |
270.00 |
266.00 |
288.00 |
283.00 |
306.00 |
300.00 |
325.00 |
317.00 |
343.00 |
|
26 |
234.00 |
228.00 |
258.00 |
293.00 |
316.00 |
313.00 |
338.00 |
333.00 |
360.00 |
352.00 |
381.00 |
372.00 |
403.00 |
|
28 |
271.00 |
264.00 |
299.00 |
339.00 |
367.00 |
363.00 |
392.00 |
386.00 |
417.00 |
409.00 |
442.00 |
432.00 |
467.00 |
|
30 |
311.00 |
303.00 |
343.00 |
390.00 |
422.00 |
416.00 |
450.00 |
443.00 |
479.00 |
469.00 |
508.00 |
496.00 |
536.00 |
|
32 |
354.00 |
345.00 |
390.00 |
444.00 |
480.00 |
474.00 |
512.00 |
504.00 |
545.00 |
534.00 |
578.00 |
564.00 |
610.00 |
|
34 |
400.00 |
390.00 |
440.00 |
501.00 |
542.00 |
535.00 |
578.00 |
569.00 |
615.00 |
603.00 |
652.00 |
637.00 |
689.00 |
|
36 |
448.00 |
437.00 |
494.00 |
562.00 |
607.00 |
600.00 |
649.00 |
638.00 |
690.00 |
676.00 |
731.00 |
714.00 |
773.00 |
|
38 |
500.00 |
487.00 |
550.00 |
626.00 |
677.00 |
668.00 |
723.00 |
711.00 |
769.00 |
753.00 |
815.00 |
796.00 |
861.00 |
|
40 |
554.00 |
539.00 |
610.00 |
693.00 |
750.00 |
741.00 |
801.00 |
788.00 |
852.00 |
835.00 |
903.00 |
882.00 |
954.00 |
|
42 |
610.00 |
594.00 |
672.00 |
764.00 |
827.00 |
816.00 |
883.00 |
869.00 |
939.00 |
921.00 |
996.00 |
973.00 |
1050.00 |
|
44 |
670.00 |
652.00 |
738.00 |
839.00 |
907.00 |
896.00 |
969.00 |
953.00 |
1030.00 |
1010.00 |
1090.00 |
1060.00 |
1150.00 |
|
46 |
732.00 |
713.00 |
806.00 |
917.00 |
992.00 |
980.00 |
1050.00 |
1040.00 |
1120.00 |
1100.00 |
1190.00 |
1160.00 |
1260.00 |
|
48 |
797.00 |
766.00 |
878.00 |
999.00 |
1080.00 |
1060.00 |
1150.00 |
1130.00 |
1220.00 |
1200.00 |
1300.00 |
1270.00 |
1370.00 |
|
50 |
865.00 |
840.00 |
952.00 |
1080.00 |
1170.00 |
1150.00 |
1250.00 |
1230.00 |
1330.00 |
1300.00 |
1410.00 |
1370.00 |
1490.00 |
|
52 |
936.00 |
911.00 |
1030.00 |
1170.00 |
1260.00 |
1250.00 |
1350.00 |
1330.00 |
1440.00 |
1410.00 |
1520.00 |
1490.00 |
1610.00 |
