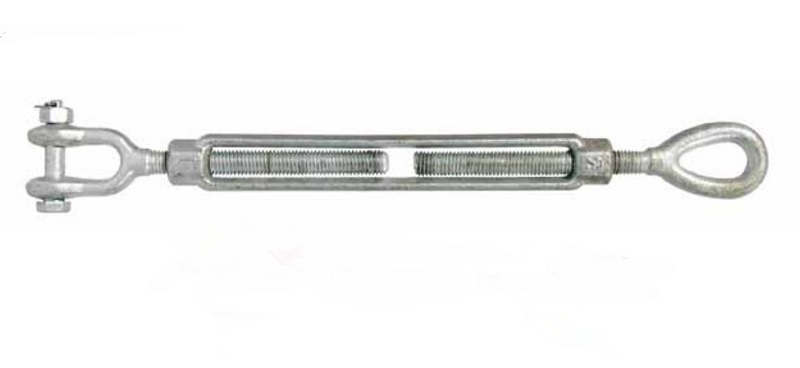

OU花蘭螺絲（美式）
Turnbuckle OU(U.S.)
産品特點
- 花籃螺絲又名索具螺旋扣，緊線扣。
- 花籃螺絲用於拉緊鋼絲繩,並起調節松緊作用。
- 表面處理：一般爲電鍍、熱鍍兩種，主要起到防止鏽蝕的作用。
- 其結構簡單 ，易加工、成本低、實用性強。

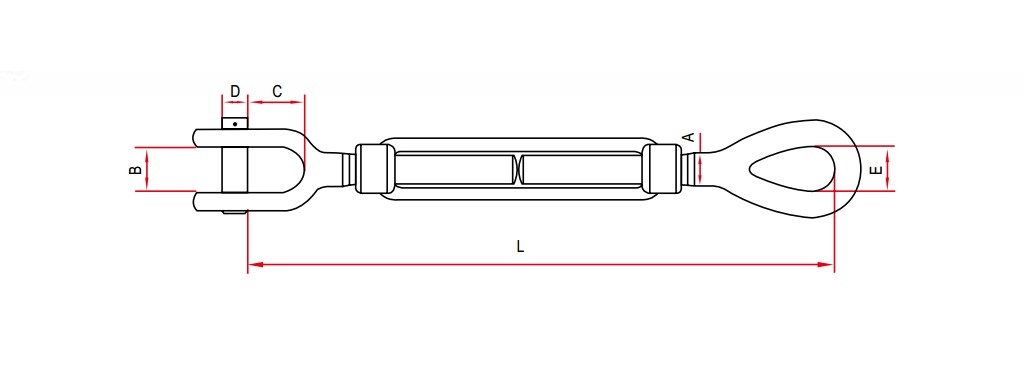

技術參數
|
型 号 Typel |
額定載荷/T Rated load |
A/mm |
B/mm |
C/mm |
D/mm |
E/mm |
L/mm |
自重/kg Weight |
|
1/4 x4 |
0.23 |
8 |
10 |
16 |
6 |
9 |
187 |
0.17 |
|
5/16 x41/2 |
0.36 |
9 |
12 |
22 |
6 |
11 |
221 |
0.26 |
|
3/8 x6 |
0.54 |
11 |
13 |
22 |
8 |
13 |
275 |
0.43 |
|
1/2 x6 |
1 |
15 |
16 |
27 |
10 |
18 |
312 |
0.79 |
|
1/2 x9 |
1 |
15 |
16 |
27 |
10 |
18 |
388 |
0.98 |
|
1/2 x12 |
1 |
15 |
16 |
27 |
10 |
18 |
465 |
1.18 |
|
5/8 x6 |
1.59 |
18 |
19 |
33 |
13 |
22 |
349 |
1.4 |
|
5/8 x9 |
1.59 |
18 |
19 |
33 |
13 |
22 |
425 |
1.65 |
|
5/8 x12 |
1.59 |
18 |
19 |
33 |
13 |
22 |
501 |
1.86 |
|
3/4 x6 |
2.36 |
21 |
24 |
38 |
16 |
25 |
386 |
2.15 |
|
3/4 x9 |
2.36 |
21 |
24 |
38 |
16 |
25 |
462 |
2.59 |
|
3/4 x12 |
2.36 |
21 |
24 |
38 |
16 |
25 |
538 |
2.84 |
|
3/4 x18 |
2.36 |
21 |
24 |
38 |
16 |
25 |
691 |
3.62 |
|
7/8 x12 |
3.27 |
25 |
29 |
44 |
19 |
32 |
567 |
4.3 |
|
7/8 x18 |
3.27 |
25 |
29 |
44 |
19 |
32 |
720 |
5.3 |
|
1x6 |
4.54 |
28 |
30 |
52 |
22 |
37 |
466 |
4.8 |
|
1x12 |
4.54 |
28 |
30 |
52 |
22 |
37 |
618 |
6.08 |
|
1x18 |
4.54 |
28 |
30 |
52 |
22 |
37 |
771 |
7.18 |
|
1x24 |
4.54 |
28 |
30 |
52 |
22 |
37 |
923 |
8.38 |
|
11/4 x12 |
6.89 |
34 |
44 |
71 |
29 |
46 |
681 |
10.64 |
|
11/4 x18 |
6.89 |
34 |
44 |
71 |
29 |
46 |
834 |
12.44 |
|
11/4 x24 |
6.89 |
34 |
44 |
71 |
29 |
46 |
986 |
14.19 |
|
11/2 x12 |
9.71 |
42 |
52 |
71 |
35 |
54 |
724 |
15.76 |
|
11/2 x18 |
9.71 |
42 |
52 |
71 |
35 |
54 |
876 |
19.16 |
|
11/2 x24 |
9.71 |
42 |
52 |
71 |
35 |
54 |
1029 |
20.76 |
|
13/4 x18 |
12.7 |
48 |
60 |
86 |
42 |
60 |
945 |
27.07 |
|
13/4 x24 |
12.7 |
48 |
60 |
86 |
42 |
60 |
1102 |
30.3 |
|
2x24 |
16.78 |
55 |
64 |
94 |
51 |
68 |
1224 |
45.97 |
|
21/2 x24 |
27.22 |
68 |
73 |
113 |
58 |
79 |
1316 |
85.85 |
|
2 3/4x24 |
34.02 |
75 |
89 |
106 |
71 |
83 |
1369 |
101.8 |
